PPUC-DMD

PPUC-DMD is a ZeDMD capable of displaying Serum v1 and v2 colorizations on real pinball machines.

Releases

2025-12-01 - New DMDreader version

DMDreader [0.5.0]: (Link to official release)

  • fixed SPIKE frame detection
  • removed STDIO over USB support for easier updates (no BOOTSEL required)
  • added Arduino framework support
  • switched to platformio based builds
  • simplified clock count programs
  • blink while auto-detecting system using a 500ms interval
  • cleaned up buffer handling
  • use second core exclusively for SPI
  • added alphaDMD support for SAM and SPIKE

IMPORTANT:

  • use dmdreader-ppucdmd.zip for PPUC/DMD
  • use dmdreader-alphadmd.zip for alphaDMD
  • dmdreader-ppucdmd2.zip is an experimental build for PPUC/DMD 2, which has not been released yet

2025-11-23 - New PPUC/DMD version

PPUC/DMD [0.4.0]:

  • Added support for the .cROMc format
  • Increased performance:
    • Increased transmission of incoming frames
    • Faster colorizing thanks to .cROMc
    • Shorter colorization loading time thanks to .cROMc

The hardware components

Currently the hardware consists out of 4 main components:

  • Raspberry Pi
  • RP2040
  • ESP32-S3-N16R8
  • PPUC-DMD Carrier PCB

IMPORTANT!

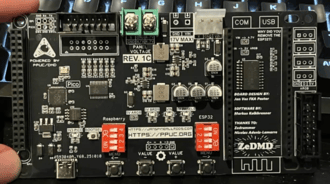

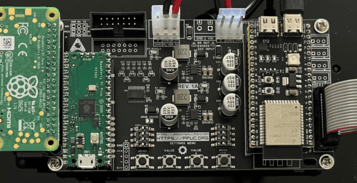

During the distribution of PPUC-DMD units between July 2025 and November 2025, two main variants have been in circulation. One is a PPUC-DMD Carrier PCB with a Raspberry Pi Pico attached via soldered pin headers (REV. 1A & REV. 1B), while the other has the Pico directly integrated into the carrier board (REV. 1C). The software update procedure differs slightly between these two versions, so please pay attention to which variant you are working with.

See both variants here:

rev1a rev1c

The software components

PPUC-DMD consists out of 3 seperate software pieces:

  • DMDreader (Pico/RP2040)
    • Reads DMD frames and sends to ZeDMDos
  • ZeDMDos (Raspberry Pi)
    • Colorizes the DMD frames and sends data to ZeDMD
  • ZeDMD (ESP32-S3-N16R8)
    • Sends out color data to the RGB panels

Updating the software

Updating the software of PPUC/DMD is rather simple. What will be required for these steps is the following:

  1. Micro SD card reader
  2. USB-C to USB-A or Micro USB to USB-A cable (depending on USB port leading to RP2040/Pico)
  3. Basic computer skills

First we will start off with updating DMDreader. Then updating ZeDMDos. Lastly there is a mini tutorial on how to install or update colorization files.

Updating DMDreader

  1. Download dmdreader-ppucdmd.zip. Click here to go to the latest release!. Check your downloads folder and unzip/unpack. You should see a file named dmdreader-ppucdmd.uf2 in the extracted folder. This file is what will be flashed onto the RP2040 chip.
  2. Grab a USB cable. For most this will be a USB-C to USB-A cable. Others might need Micro USB to USB-A.
  3. Make sure game is turned off, WARNING: in case of owning a REV. 1A/B board, you must remove the Raspberry Pi Pico/RP2040 from the PPUC/DMD carrier PCB! The power trace is directly connected to the Rapsberry, so it NEEDS to be removed! When owning a REV. 1C board you don't have to worry, you can lay the DMD down for easy access to the USB-C port.
  4. On the RP2040/Pico microcontroller and REV. 1C board, you'll find a button labeled BOOTSEL. This button enables software flashing mode. Watch this video for a demonstration! To enter this mode, hold down the BOOTSEL button while connecting the USB cable from your computer to the RP2040/Pico. Once connected, a folder should appear on your computer named RP2-B2.
  5. Drag and drop the dmdreader.uf2 file into that folder, which was obtained in step 1. Wait a few seconds until the RP2-B2 folder closes.
  6. End of DMDreader flashing. Remove USB cable and in cases of REV. 1A/B boards, plug the RP2040/Pico back into the PPUC/DMD carrier board. Make sure all pins line up correctly!

Updating ZeDMDos and installing or updating the colorization file

Updating ZeDMDos requires a bit more work compared to DMDreader.

  1. Take a look at your Raspberry Pi, this is the bigger green board which is upside down over to the left. There should be a specific number on there, ranging from 1-45. This number tells you which software file you need to install in step 2.
  2. Install the required files. Click here to go to the folder! Having kept the number from step 1 mind, go to the ZeDMDos software files - PPUC/DMD [0.4.0] folder and download YourNumberHere.zip.
  3. All colorization files have received an update which decreases the loading time marginally. From the Colorizations folder, click on the colorization of choice and download the serum.cROMc file. Keep this file as is and do not rename it.
  4. Take the Micro SD card out of your Raspberry Pi. IMPORTANT: the supporter editions are hardware protected, you have to reuse the same SD card! Now get a MicroSD card reader, or a laptop which has the correct slot built in. Boot up your PC or laptop and insert the MicroSD card. Click here for a video on how to update the ZeDMDos software!

End of installation. Now plug your Micro SD card back into your Raspberry Pi. And of course, boot up the game to see if all is well :)

Installing or updating a colorization file

  1. Installing a new colorization file is easy. Get the desired file, ideally a .cROMc file, .cRZ is also supported, though needs to be converted into a .cROM by extracting the .cRZ file as if it is a zip file. In all cases the final name of the file should be either serum.cROMc or serum.cROM. Case sensitivity matters here! Failing to follow these guidelines will result in black and white DMD output.
  2. When you have your file ready and waiting, open up the colorizations folder on your Micro SD card, then navigate to the serum folder. This is where you will place your serum.cROMc or serum.cROM file. Be sure to delete any previous files, or simply overwrite an existing one. You shouldn't have multiple files next to eachother in the serum folder.
